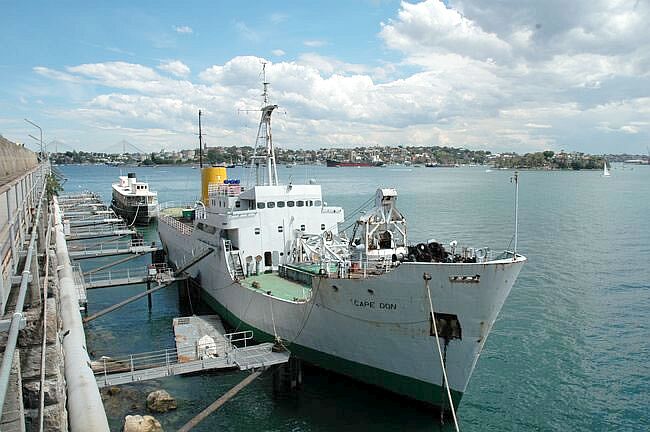

MV Cape Don and the ex Sydney to Manly ferry the MS Baragoola seen at Balls Head

Photograph © mvcapedonsociety.org.au

Introduction:

Like the famed historic Sydney Harbour ferry, the MS Baragoola, which I strongly support in saving and preserving, and I am now adding the delightful 1963 built MV Cape Don, which is a unique all Australian vessel that should, and must be retained at all costs!

The MV Cape Don is under the tender care of the excellent “MV Cape Don Society Inc” and she is berthed at Balls Head Drive in Waverton, Sydney located just forward of the Baragoola. I highly suggest that you visit their excellent webpage at www.mvcapedonsociety.org.au and read all about this fascinating ship, including their news updates and view the many photographs online of her interiors and exteriors. These photographs cover her throughout the years at sea as well as in ports around the country and as she is today. Although thanks to Mr. Warwick Riddle who is the curator of the CLS Museum has kindly sent a good number of excellent photographs, which are featured on this page.

MV Cape Don:

MV Cape Don was built at the Newcastle State Dockyards, NSW, and completed in January 1963, one of a unique class of ships purpose-built to service navigational aids (including manned lighthouses) around Australia, thus she was part of the “Commonwealth Lighthouse Service.”

To fulfil these tasks, she was built as a mini-liner, with excellent passenger accommodation necessary to carry officials, technicians, relief lighthouse crews and their families, at times for prolonged periods at sea. She is powered by a 5-cylinder Australian Polar M65T diesel engine developing 2,000 BHP at 250 RPM, driving a 4-blade, 5 tonne Kamewa controllable pitch propeller, 9.2 ft (2.75 m) in diameter. For cargo handling she is equipped with one Clark Chapman electric crane SWL 12.5 ton (12.7 metric tonnes).

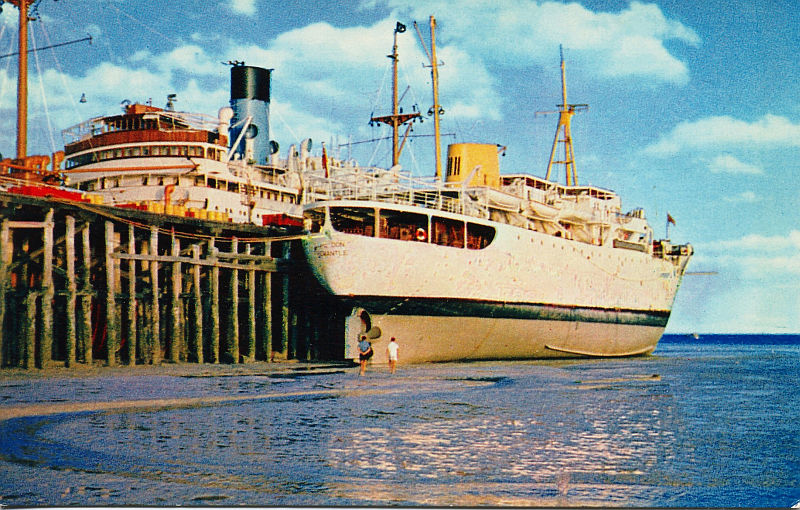

This is an excellent postcard of the MV Cape Don seen at Broome Western Australia

This postcard was kindly provided by Andrew Mackinnon

Above Image: The MV Cape Don is seen during low tide sitting on the mud which was quite a regular occurrence in this port and ships of the Blue Funnel lines such as the one seen alongside being the passenger cargo liner SS Gorgon or the SS Charon has hardened steel bottoms to cope. Their later ship the popular MV Centaur also had a strengthened hull to cope with having to sit on the mud at several ports on the Western Australian ports. The photograph was obviously taken sometimes between Feb 1963 when the Cape Don commenced sailing and May 1964 when these two Blue Funnel liners ended their career and were replaced by the brand new Centaur!

Preservation of the MV Cape Don:

Having been long retired, the MV Cape Don Society is now responsible for restoring this superb ship and they will be setting up a museum on board her to tell the story of her many years of dedicated service. The MV Cape Don Society has thankfully received a great deal of assistance from AMSA, as well as past crewmembers and the public who have donated artefacts, uniforms and a great number of photographs, etc. The museum will be set up on board the ship after the restoration has been completed inside.

MV Cape Don Photo Album

Most images below were provided by Mr. Warwick Riddle

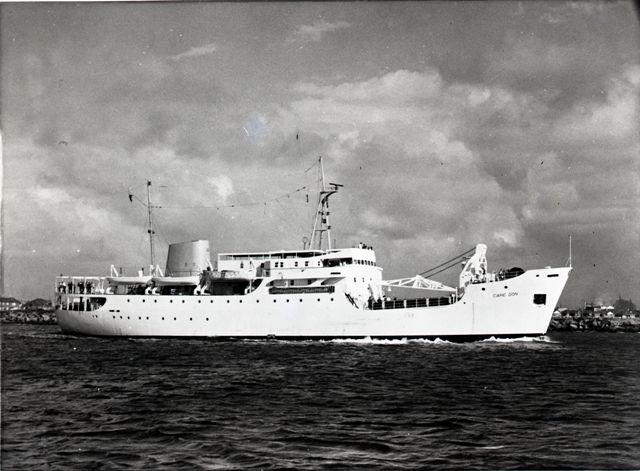

WR-Cape-Don-Sea-trials

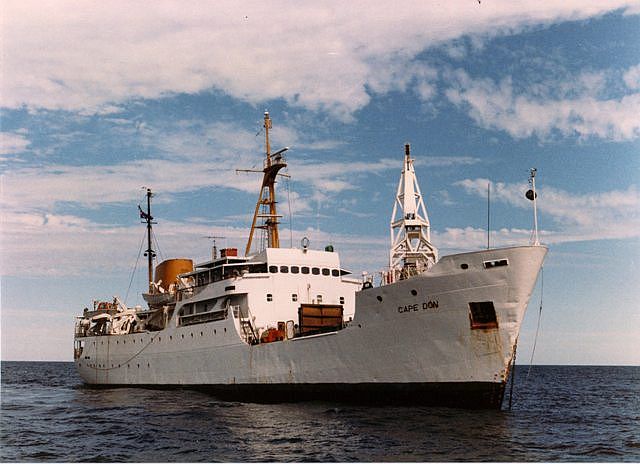

The Cape Don is seen here off Port Hedland

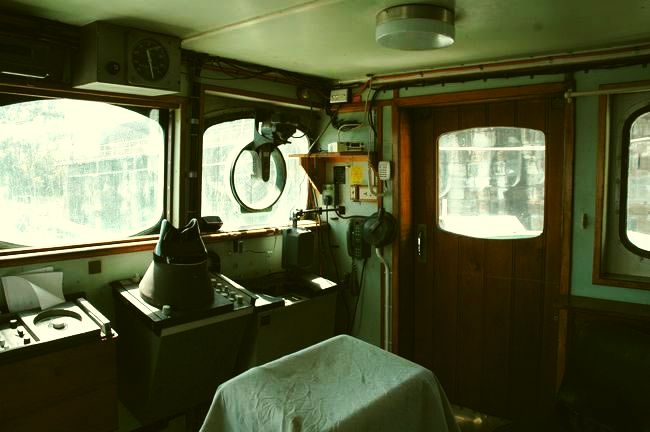

The ships Bridge as seen today

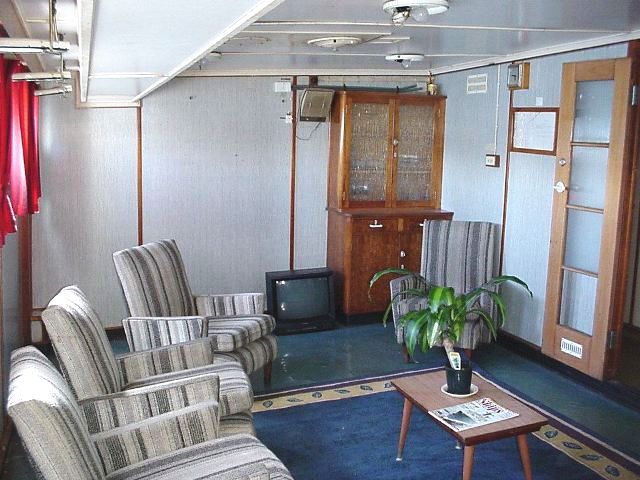

Cape Don's passenger-lounge

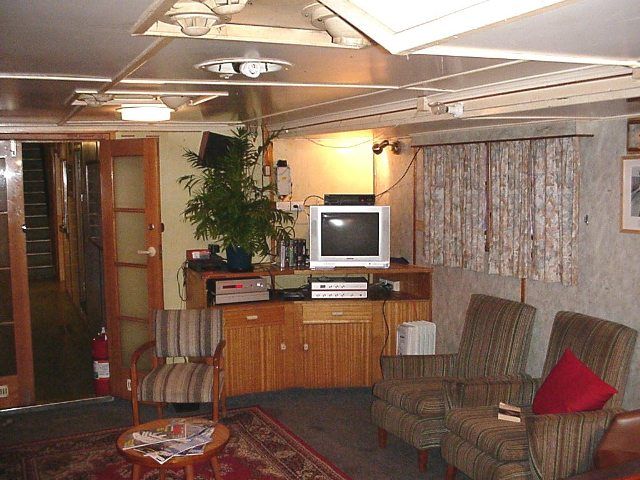

The passenger smoke room

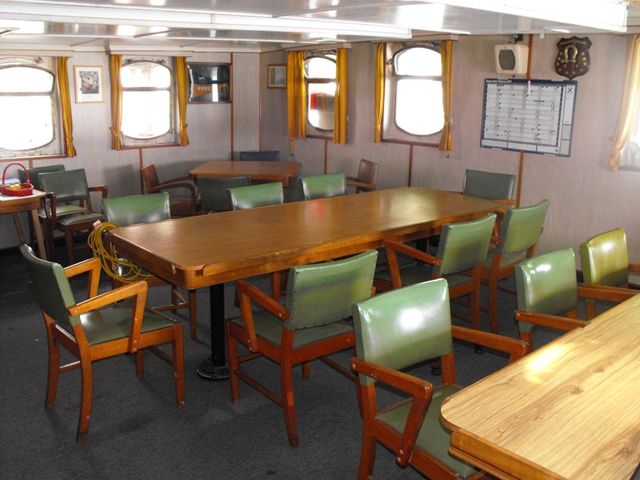

The Dinning Saloon

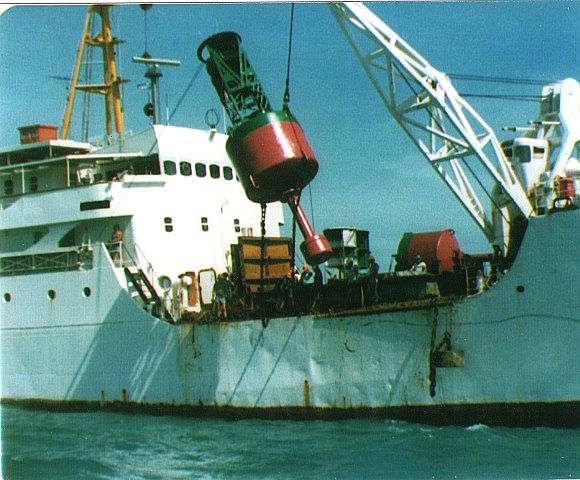

Cape Don seen off Port Walcott in March 1982, whist laying a new buoy

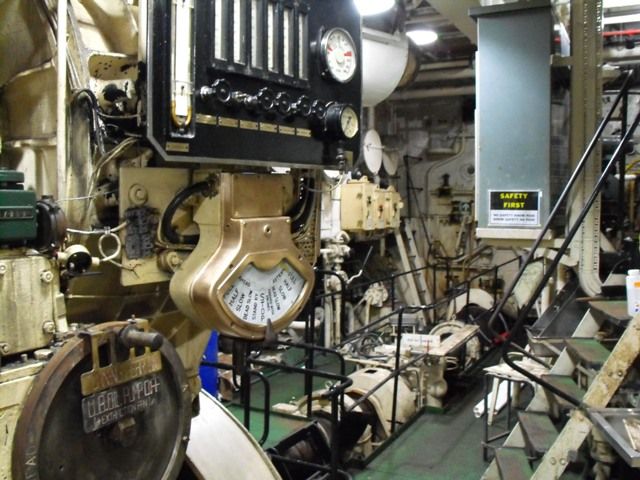

 The engine room control platform

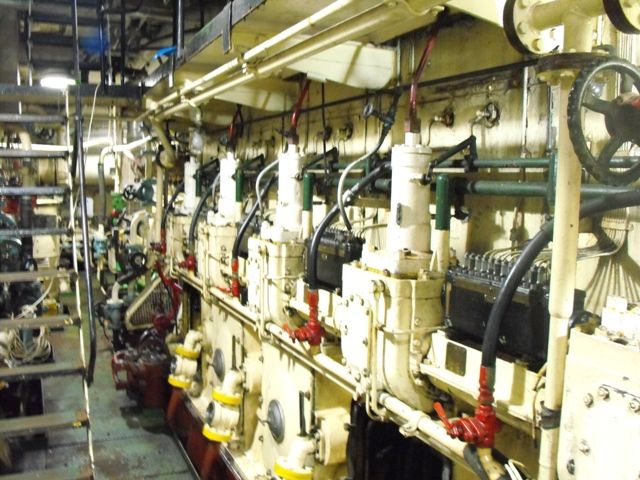

Cape Don’s Engine

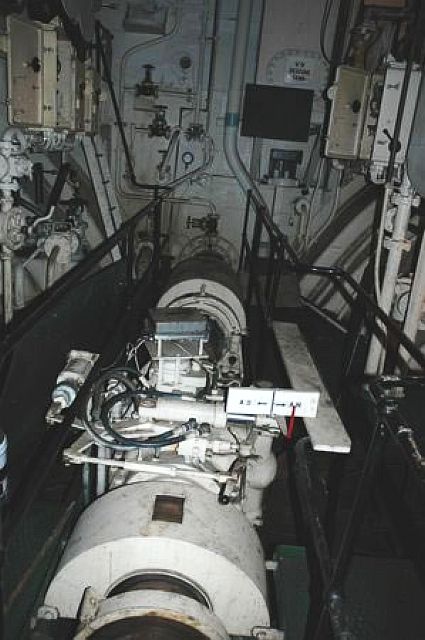

The propeller shaft

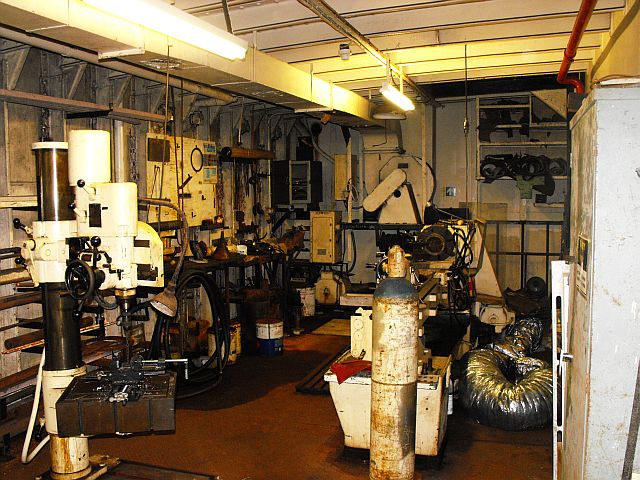

The ships workshop

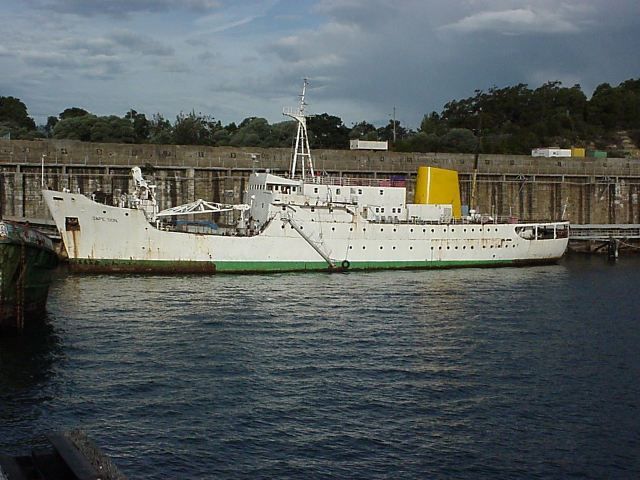

The delightful MV Cape Don is seen here at her current berth at Balls Head, Sydney in 2010



Cape Don needs your help - Today!

The MV Cape Don NEEDS YOUR HELP Right NOW, and I ask for all ship lovers to give a hand, be it by the means of assisting be it by the providing a donation, via their website, or assisting as a volunteer and be assured that you will be made most welcome!

Click the IMAGE above to enter - http://mvcapedonsociety.org.au.

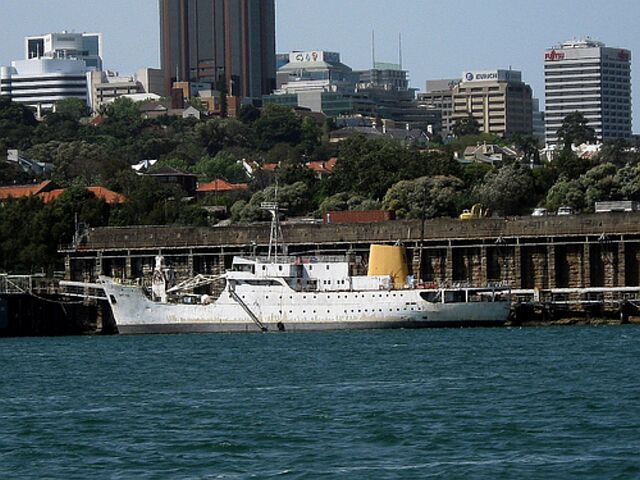

She is sheer beauty, and lets make sure that we keep her looking just like that!

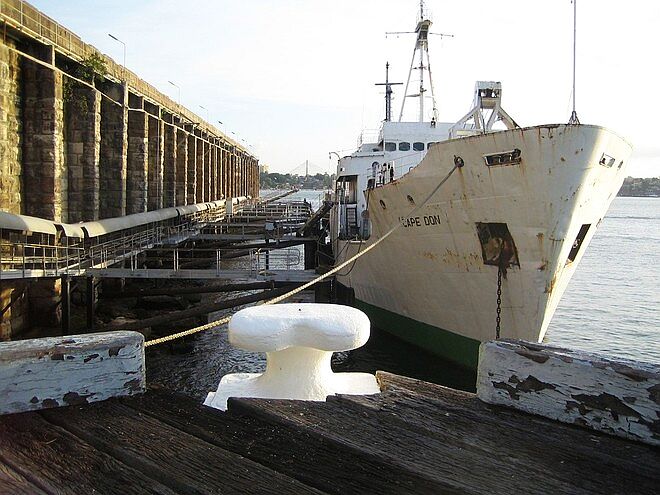

The Cape Don is a good-looking ship and she has many delights to be discovered on board!

Photographer unknown - *Please see photo notes at the bottom of page



****************************************

MV Cape Don - Specifications:





Length (over all) 243' 7" 74.25 m
Length (between perpendiculars) 220' 0" 67.05 m
Extreme breadth 42' 1.75" 12.846 m
Moulded breadth 42' 0" 12.802 m
Depth to upper deck 23' 6" 7.16 m
Depth to main deck 16' 0" 4.88 m
Bridge to stem distance 88' 0" 26.8 m
Height of foremast above Load Water Line 83' 0" 25.3 m
Height of bridge above LWL 28' 0" 8.53 m
Light ship draft 9' 3.25" 2.83 m
Maximum summer draft 14' 4" 4.37 m
Fresh water allowance 3.5" 88.9 m
Gross tonnage 2106.24 t 2139.8 mt
Nett tonnage 714.6 t 726.07mt
Light ship displacement 1565 t 1590 mt
Capacities:
Fresh water
Water ballast
Oil fuel

377 t
254 t
132 t

383 mt
258 mt
134 mt
Capacities, cargo:
Hold
'Tween deck
Lockers

276 t
145 t
14 t

281 mt
147 mt
14 mt
Daily consumption:
Fuel: steaming
Fuel at anchor
Fresh water –

6.0 t
0.5 t
7 t

6.1 mt
0.6 mt
7.1 mt
Service speeds:
at 230 rpm DP
at 200 rpm DP

12.7 knots
10.2 knots

Complement:
Crew
Passengers

39
12




The MV Cape Don needs your helpTODAY - Therefore …



Please Visit the www.mvcapedonsociety.org.au pages!

I wish to thank you for your support and I know that the hard working volunteers of the MV Cape Don Society Inc” will be more than grateful!

Reuben Goossens.
